Luigi's Box Magento 2 Integration Guide

Overview

This guide walks you through integrating Luigi’s Box with your Magento 2 store. The integration enables:

Search - AI-powered product search with typo tolerance and synonyms
Product Recommendations - Personalized product suggestions
Analytics - Insights into customer search behavior
Automatic Data Sync - Your catalog stays up-to-date with Luigi’s Box

Time to Complete: 15-30 minutes Prerequisites: Magento 2.3.1+, PHP 7.4+, Admin access, Store accessible on the internet

⚡️ Expert Quickstart (TL;DR) — Click to expand

1. Install & Enable:

composer require luigisbox/magento2-integration
php bin/magento setup:upgrade && \
php bin/magento setup:di:compile && \
php bin/magento setup:static-content:deploy -f && \
php bin/magento cache:flush

2. Activate:

In Magento Admin, go to System → Extensions → Integrations
Find LuigisboxIntegration and click Activate
Click Allow and follow the popup to log in or create your account

3. Common Gotchas:

Store Not Public: Activation will fail if your store is not on the internet. Test public access.
Cloudflare: Regular Bot Fight Mode must be disabled. Super Bot Fight Mode requires a skip rule.
Script Not Injected: If the script doesn't appear in your <head>, add it manually via Content → Configuration → HTML Head.

Phase 1: Installation

Step 1: Install via Composer

  composer require luigisbox/magento2-integration

Step 2: Enable the Module

Run the following commands in sequence:

# Run database and schema upgrades
php bin/magento setup:upgrade

# Compile dependency injection configuration
php bin/magento setup:di:compile

# Deploy static content (CSS, JS, images)
php bin/magento setup:static-content:deploy -f

# Clear all caches
php bin/magento cache:flush

Step 3: Verify Installation

php bin/magento module:status Luigisbox_Integration

Expected output: Module is enabled

In Magento Admin:

Go to System → Extensions → Integrations
Look for “LuigisboxIntegration” in the list
Status should show "Inactive" (will activate in Phase 3)

Phase 2: Network and security

Prerequisites check

Before activating the integration, ensure your Magento store meets these requirements:

Store must be publicly accessible

Critical: Luigi’s Box needs to access your store’s API from the internet.

Will NOT work:

Localhost or local development environments
Staging servers behind VPN or firewall
Stores with IP restrictions blocking external access

Will work:

Production stores with public URLs
Staging servers accessible from the internet

Test external access:

From a different network (mobile phone, external server):

curl -I https://your-store.com/

Expected: HTTP 200 or 405 response (not timeout or connection refused)

Cloudflare configuration

If your store uses Cloudflare, you need to configure bot protection settings:

If using Super Bot Fight Mode:

You can create a skip rule to allow Luigi’s Box traffic:

Log into Cloudflare dashboard
Go to Security → Security Rules
Click Create rule
Configure the rule:
- Rule name: Allow Luigi’s Box
- Expression: (ip.src in {3.126.67.184 3.78.191.91 35.157.250.137 63.177.144.47 52.57.232.136 82.119.103.110} and http.user_agent eq "LuigisBox")
- Choose action: Skip
- WAF components to skip:
  - All remaining custom rules
  - All rate limiting rules
  - All managed rules
  - All Super Bot Fight Mode rules
- More components to skip:
  - User agent blocking
  - Rate limiting rules
  - Managed rules
- Rule placement: First
Click Save

This allows Luigi’s Box to access your store’s API endpoints while keeping bot protection active for other traffic.

HTTP Basic Authentication (if applicable)

If your store uses HTTP Basic Authentication (password protection), you need to allow Luigi’s Box to bypass it.

Configure Nginx to bypass basic auth:

The configuration has two parts, add them to your Nginx config file (typically /etc/nginx/sites-available/your-site):

Part 1: Add OUTSIDE the server block (at the top of your config file):

# Luigi's Box IP whitelist
geo $luigisbox_ip {
    default 0;
    3.126.67.184 1;
    3.78.191.91 1;
    35.157.250.137 1;
    63.177.144.47 1;
    52.57.232.136 1;
    82.119.103.110 1;
}

# Check for Luigi's Box User-Agent
map $http_user_agent $luigisbox_ua {
    default 0;
    "LuigisBox" 1;
}

# Bypass auth only if BOTH IP AND User-Agent match
map "$luigisbox_ip:$luigisbox_ua" $is_luigisbox {
    default 0;
    "1:1" 1;  # Both IP and User-Agent match = bypass auth
}

Part 2: Add INSIDE your server block:

# Allow access if: Luigi's Box (IP+UA) OR valid auth credentials
satisfy any;

# Conditionally disable auth for Luigi's Box
set $auth_basic_realm "Restricted Access";
if ($is_luigisbox = 1) {
    set $auth_basic_realm off;
}

auth_basic $auth_basic_realm;
auth_basic_user_file /path/to/.htpasswd;  # Replace with your .htpasswd path

Test and reload Nginx:

sudo nginx -t
sudo systemctl reload nginx

Security information

OAuth 1.0a authentication

The integration uses OAuth 1.0a for secure API access:

No passwords stored - Token-based authentication only
Encrypted communication - All API calls over HTTPS
Read-only access - Extension cannot modify products or orders
Revocable tokens - Can disable integration anytime

What Luigi’s Box can access

Allowed Resources:

Product catalog (SKU, name, description, price, images)
Categories and category structure
Inventory levels and stock status
Product attributes (color, size, brand, custom attributes, etc.)
Store configuration (currency, timezone, URL, locale)
Parent-child product relationships (configurable, grouped, bundle products)
Multi-source inventory data (warehouse locations and quantities)

NOT Allowed:

Customer personal information
Order history and purchase data
Payment information
Admin user accounts
System passwords or keys

Phase 3: Activation

Before you begin

Important Prerequisites:

Extension is installed (Phase 1 complete)
Store is accessible from the internet (Phase 2 complete)
You have Magento admin credentials
Store has at least a few test products (recommended)

Estimated Time: 5-10 minutes

Step-by-step activation

Step 1: Access integration settings

Log into Magento Admin Panel
Navigate to System → Extensions → Integrations
Find LuigisboxIntegration in the list
Click Activate button

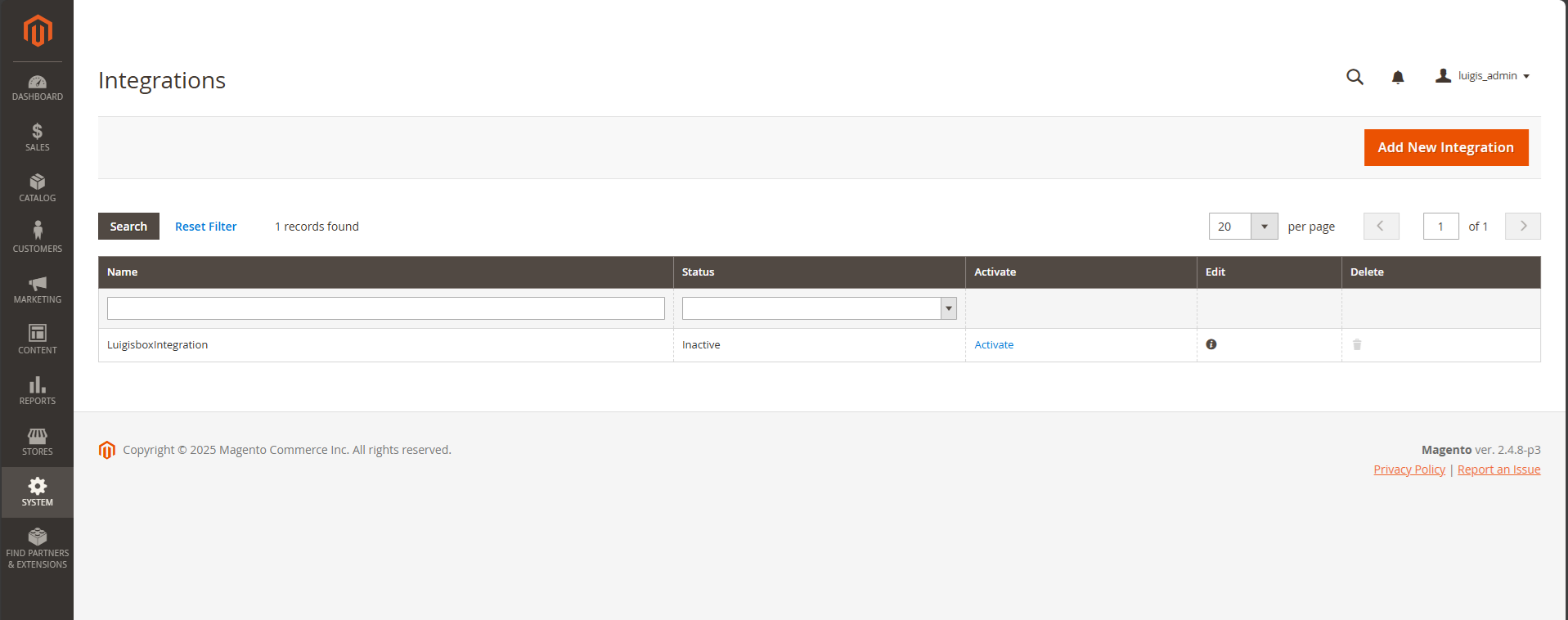

Integration List

Step 2: Confirm activation

A menu appears displaying the API permissions needed.

Click Allow to proceed
Magento generates OAuth credentials automatically
Integration status changes to Active

Behind the Scenes:

Magento creates OAuth consumer and access token
Stores credentials in oauth_consumer and oauth_token database tables
Integration is now ready to accept API requests

Step 3: Authorize with Luigi’s Box

After clicking Allow in Magento, a popup window opens from Luigi’s Box.

In the Luigi’s Box popup:

You’ll be prompted to either create a new account or log in with existing credentials
Follow the on-screen instructions to complete authentication
After successful login or account creation, you’ll be redirected to the Luigi’s Box Web Application

Step 4: Get your tracking script

Once in the Luigi’s Box dashboard:

You’ll be presented with your tracking script
The script will look like: <script src="https://scripts.luigisbox.tech/LBX-XXXXX.js"></script>
Note your tracker ID (the LBX-XXXXX part) for reference

The extension will attempt to inject this script automatically (see “Tracking Script Installation” section below).

Step 5: Verify integration status

In Magento Admin:

Go to System → Extensions → Integrations
LuigisboxIntegration should show:
- Status: Active
- Consumer Key: Generated (long alphanumeric string)

Tracking script installation

After successful activation, Luigi’s Box attempts to automatically inject its tracking script into your store.

What is the tracking script?

The tracking script enables:

Search behavior tracking - What customers search for
Product view tracking - Which products are viewed
Click-through tracking - What search results are clicked
Conversion tracking - Which searches lead to purchases

Example script:

<script src="https://scripts.luigisbox.tech/LBX-XXXXX.js"></script>

Automatic injection (default)

How It Works:

Luigi’s Box communicates with the Magento to automatically inject the tracking script into your store’s <head> element on all pages.

Success Verification:

Open your store homepage in a browser
View page source (right-click → View Page Source)
Search for “luigisbox” or “LBX-”
You should find: <script src="https://scripts.luigisbox.tech/LBX-XXXXX.js"></script>

If Script Appears: Automatic injection succeeded! Skip to “Next Steps”

Manual script injection (fallback)

When is this needed?

Automatic injection may fail if:

Store uses custom theme that doesn’t include configuration-based scripts
Cache isn’t cleared after activation
Store configuration has been customized or overridden

Symptoms:

Script doesn’t appear in page source after 10-15 minutes

Manual installation steps:

Via Magento admin

In Magento Admin, go to Content → Configuration
Click Edit for your store view
Expand HTML Head section
In Scripts and Style Sheets field, add:
```
<script src="https://scripts.luigisbox.tech/LBX-XXXXX.js"></script>
```
(Replace LBX-XXXXX with your actual Luigi’s Box tracker ID from the dashboard)
Click Save Configuration
Clear cache: php bin/magento cache:flush

Verify manual installation:

Open store homepage in incognito/private window (bypass cache)
View page source
Search for “luigisbox”
Script should appear in <head> section

Verification and testing

Verify integration is active

Check that the integration is working correctly:

In Magento Admin:

Go to System → Extensions → Integrations
LuigisboxIntegration should show Status: Active

In Luigi’s Box Dashboard:

Go to Catalog Browser section
Check product count (should be > 0 after initial sync completes)

Verify tracking script

Open your store homepage in a browser
View page source (right-click → View Page Source)
Search for “luigisbox” or “LBX-”
You should find: <script src="https://scripts.luigisbox.tech/LBX-XXXXX.js"></script>

If script doesn’t appear, see “Manual Script Injection” section in Phase 3.

Initial sync

Initial sync begins automatically after activation.

For detailed sync monitoring, see: Magento 2 Data Synchronization Guide

Next steps

Immediate (post-integration)

Verify tracking script is installed (see “Tracking Script Installation”)
Wait for initial sync to complete (5-60 minutes typically)
Review Luigi’s Box dashboard for product data

Configure your features

Once your catalog is synced, you can implement Luigi’s Box features on your storefront.

Implement Search: Activate and configure your new search bar.
Implement Recommendations: Add personalized “cross-sell” and “upsell” carousels to your product and cart pages.
Implement Product Listings: Power your category pages with Luigi’s Box for smart filtering and faceting.

Ongoing maintenance

Monitor data sync (see Data Synchronization Guide)
Review search analytics weekly
Optimize search configuration based on customer behavior
Update extension when new versions are released

Additional resources

Data Synchronization Guide

Glossary

Key terms

Integration Connection between Magento and Luigi’s Box that enables data synchronization and search functionality.

OAuth 1.0a Industry-standard authentication protocol for secure API access without sharing passwords.

Access Token Secret key that allows Luigi’s Box to access your store’s API.

Tracking Script JavaScript code that tracks customer search behavior and enables Luigi’s Box features.

Sync / Synchronization Process of copying product data from Magento to Luigi’s Box servers.
